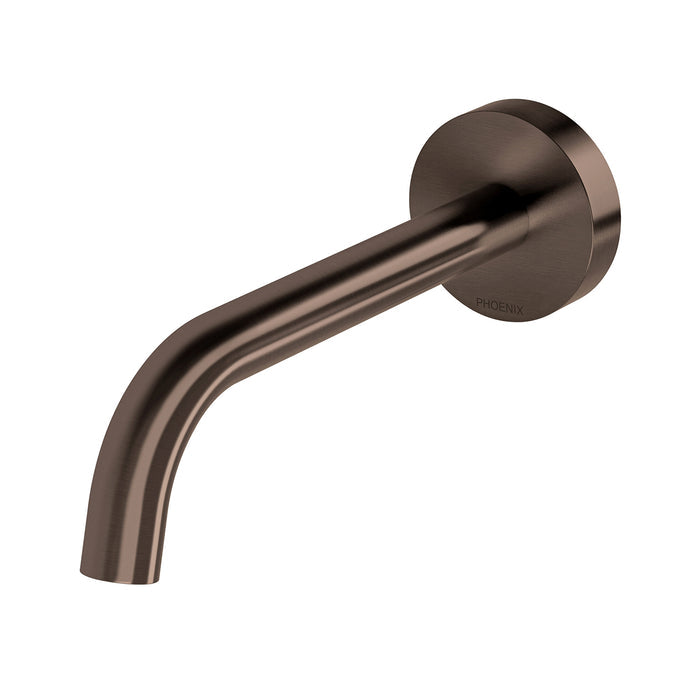

Phoenix Vivid Slimline Plus Wall Basin / Bath Outlet 180mm - Brushed Bronze

A simple wall outlet in the Vivid Slimline Plus profile, ready to serve a basin or bath with a 180mm reach. The screw-on spout is brass-built with a free-flow aerator included for bath installations, and its warm Brushed Bronze finish ties into the collection's low-profile, teardrop-detailed tapware. Designed with 'form follows function' in mind, it suits both retrofitted and new spaces.

• Screw on spout
• Brass construction
• Supported by a 7 year warranty
• Lead Free composition
• Designed in Australia
• Durable, high quality finish
• Free flow aerator included in box for bath installation

Specifications

WELS water efficiency: 5 star
WELS water consumption: 5.5lt/min
WELS registration number: T32811
Watermark certification: All Phoenix taps are Watermark Certified
Construction material: Lead free brass
Finish/coating: PVD
Operating mechanism:
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

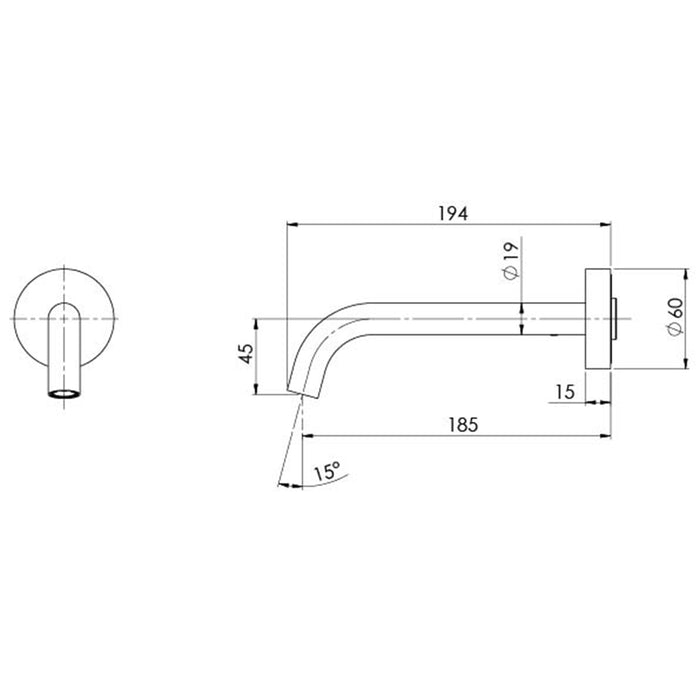

Overall height: 60mm
Height to spout: 45mm
Spout reach: 185mm
Spout function: Fixed

Warranty: 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty

What's In The Box

1x Basin Outlets, 1x Installation kit, 1x Installation instructions, 1x Warranty card

Downloads

Download the specification sheet below:

Phoenix Vivid Slimline Plus Wall Basin / Bath Outlet 180mm - Brushed Bronze

Download the installation instructions below:

Phoenix Vivid Slimline Plus Wall Basin / Bath Outlet 180mm - Brushed Bronze
