Radiant Tile Insert Linear Shower Grate - Warm Brushed Nickel

he Radiant Tile Insert Linear Shower Grate is a simple yet elegant rectangular design which will all but disappear after tile installation. These grates come in a range of sizes to suit any bathroom.

• 316 Marine Grade Stainless Steel
• Warm Brushed Nickel PVD finish
• Rolled edges to all exposed edges
• Available in 600mm, 700mm, 800mm and 900mm lengths
• Australian Watermark approved
• 12mm deep insert can accommodate up to 10mm tile and adhesive
• With fixed central wastes
• Puddle flange is NOT included with this grate
• Supported by a 7 year warranty

Specifications

Construction material: Stainless steel
Finish/coating: PVD
Width: 100mm
Length: 600mm / 700mm / 800mm / 900mm
Depth: 52mm
Insert depth: 12mm
Waste pipe size: 80mm
Outlet diametre: Ø 74mm
Warranty: 7 years

What's In The Box

• Radiant Tile Insert Linear Shower Grate - Brushed Nickel

Downloads

Download the specification sheet below:

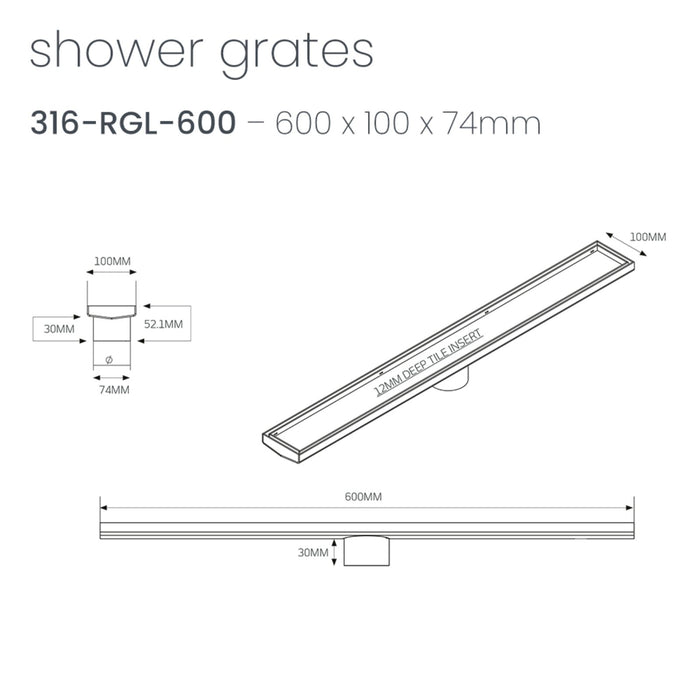

Radiant Tile Insert Linear Shower Grate - 600mm length + 74mm outlet - Brushed Nickel

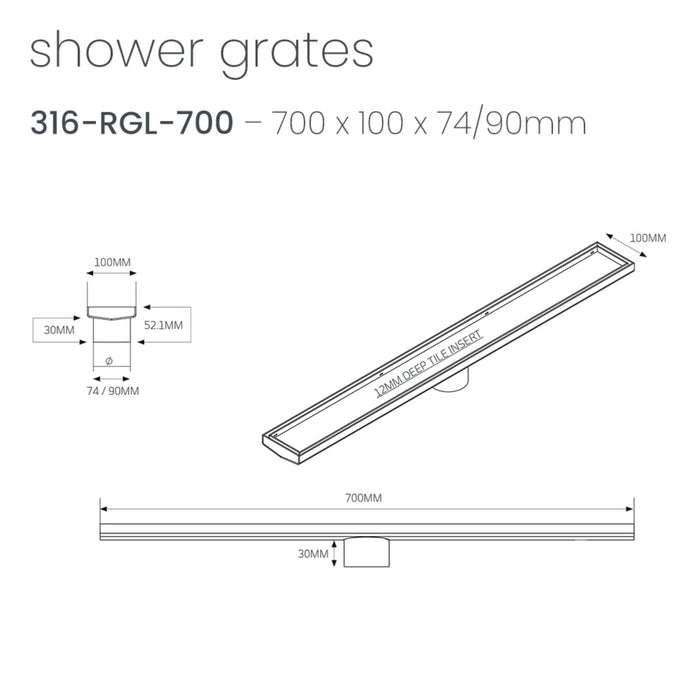

Radiant Tile Insert Linear Shower Grate - 700mm length + 74mm outlet - Brushed Nickel
Radiant Tile Insert Linear Shower Grate - 800mm length + 74mm outlet - Brushed Nickel

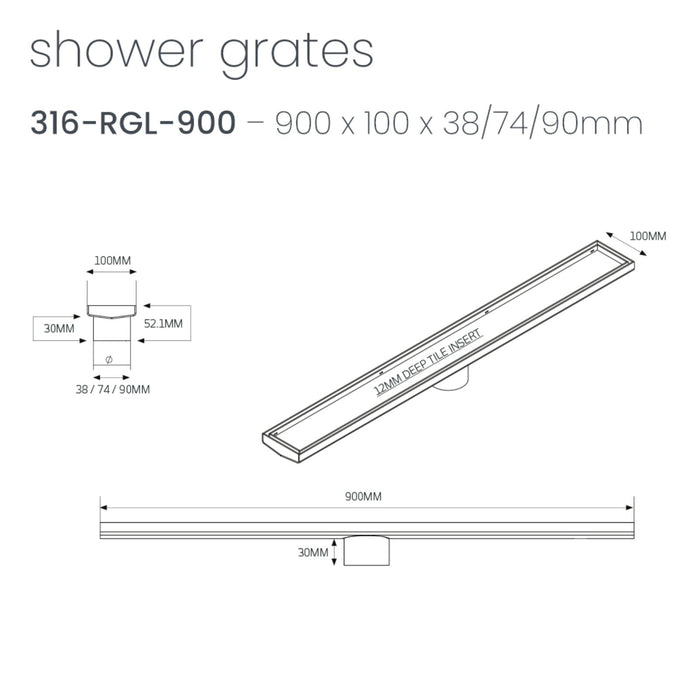

Radiant Tile Insert Linear Shower Grate - 900mm length + 74mm outlet - Brushed Nickel
