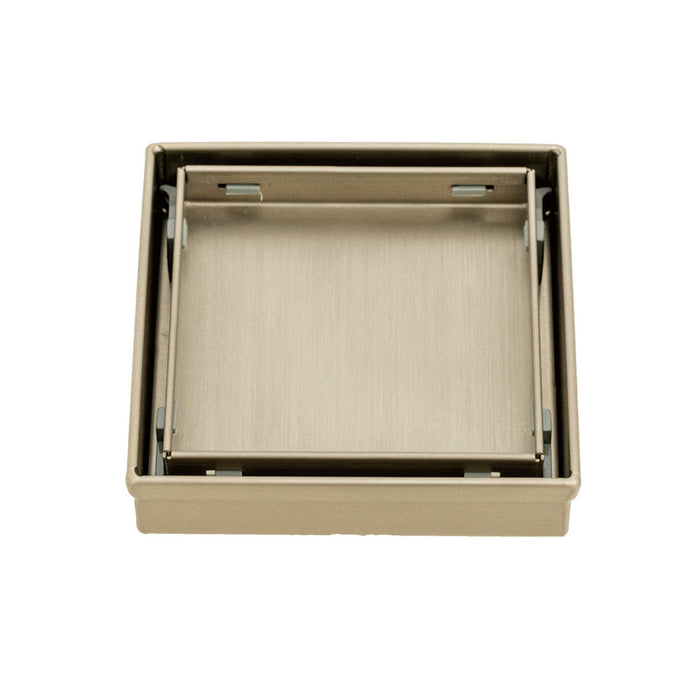

Radiant Tile Insert Square Floor Waste - Warm Brushed Nickel

The Radiant Tile Insert Square Shower Grate is a simple yet elegant square design, coming in a range of sizes to suit any bathroom.

• Manufactured from 316 marine grade stainless steel
• Warm Brushed Nickel PVD finish
• 100mm x 100mm
• Australian Watermark approved
• 12mm deep insert can accommodate up to 10mm tile and adhesive
• 38mm Outlet Variant fits 50mm Waste (Puddle Flange)
• 74mm Outlet Variant fits 80mm Waste
• NOT recommended for use directly below unrestricted overhead rain showers due to the excessive amount of water delivered
• Puddle Flange is NOT included
• 7 Year Warranty

Specifications

Construction material: Stainless Steel
Finish/coating: PVD
Width: 100mm
Length: 100mm
Depth: 54mm
Insert diametre: Ø 38mm / 74mm
Waste pipe size: 80mm
Warranty: 7 years

What's In The Box

• Radiant Tile Insert Square Shower Grate - Brushed Nickel

Downloads

Download the specification sheet below:

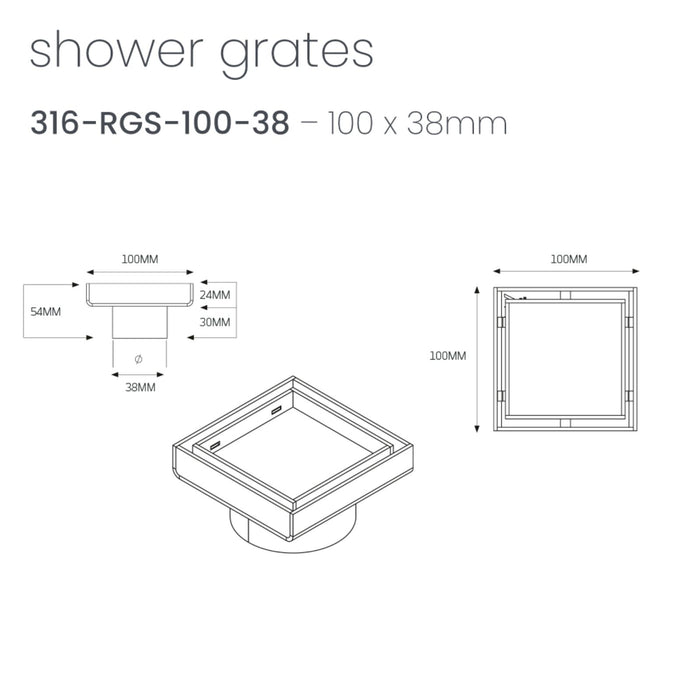

Radiant Square Tile Insert Shower Grate 100mm + 38mm Outlet Warm Brushed Nickel
Radiant Square Tile Insert Shower Grate 100mm + 74mm Outlet Warm Brushed Nickel
