Lockwood Symmetry Round Cavity Sliding Door Entrance Set Matte Black Dp

Upgrade the security and aesthetics of your home with Lockwood Cavity Sliding Door Entrance Locks. These locks are perfect for any sliding door, providing both a modern look and a key lock for added security. Transform your bathroom or lounge room, and add a lock to interconnecting doors for peace of mind.

• Fits flush against the sliding door panel for full recess into the cavity and installs easily into a standard 54mm door prep with a 60mm backset.
• Key locking and turn function protects the secondary external application for an interconnecting sliding cavity door
• Outside - Locked or unlocked by key Inside - Locked or unlocked by turn-plate
• Designed after extensive research, the sliding cavity door lock features an innovative retractable door pull which combines style with functionality.
• Australian standards compliance AS4145.2-2008: Tested to exceed 30,000 turn cycles withstanding 3 kN of pull force
• Available in a full suite of door hardware options in 5 types and 3 colours. View the full collection here
• 25 Year Warranty

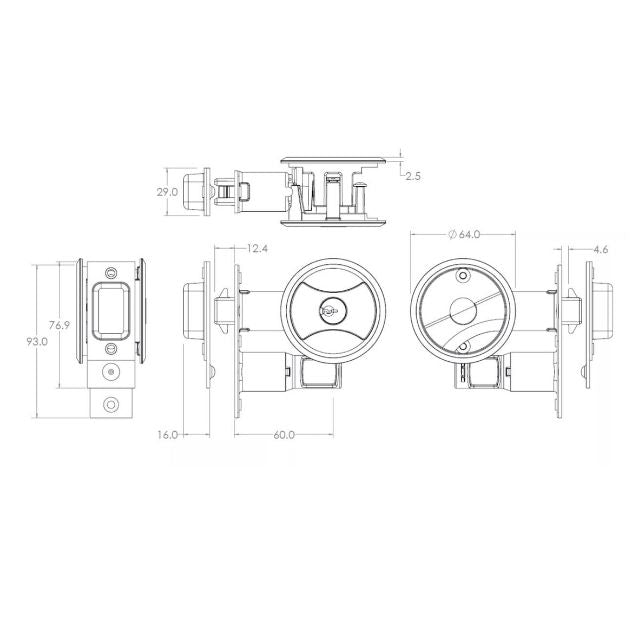

Specifications

Usage: Entrance
Material: Zinc Alloy
Mounting: Internal
Door Thickness: 32* - 40mm * Requires spacer ring (included)
Latch Type: Bolt Beak
Keying: 5 Pin C4 keyway Supplied individually keyed with two keys per Lock
Lock Type: Bolt Beak
Backset: 60mm
Finish/coating: Zinc Alloy
Length: 64mm
Width: 29mm
Warranty: 25 Year

What's In The Box

Latch Face Plate, Front and Back furniture, packers, fixing screws, 2 x keys, installation instructions and drilling template.

Downloads

Download the installation instructions sheet below:
